Aimetech Cable connector

Aimetech Cable connector
0 Reviews
$ 13.60 $13.60 -0%
Qty:
In stock
30-day Return Policy, Learn More
Description

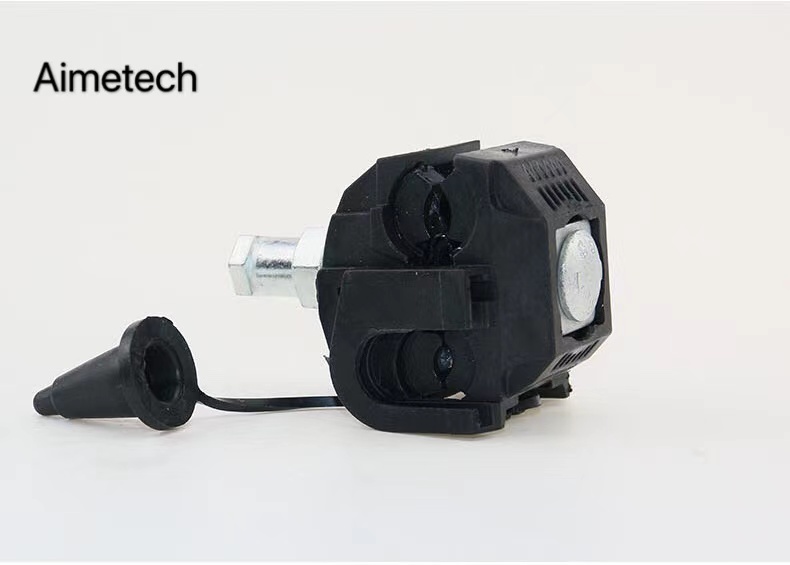

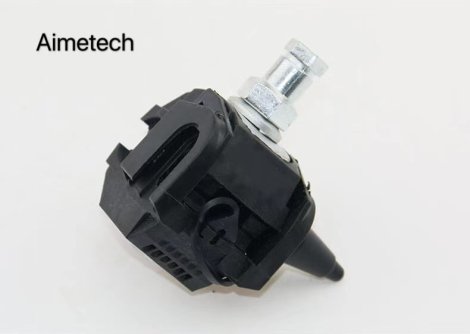

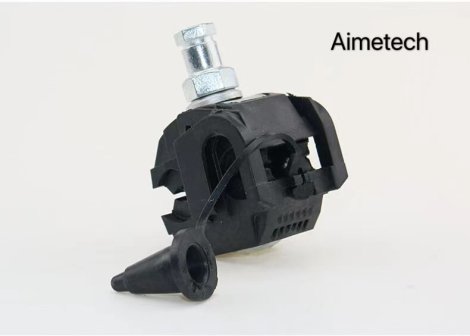

Product name: piercing clamp cable connector
Model: JJC-3
Material: Copper
Shape: rectangle
Features: Waterproof
Application: Cable
Product use: Our insulated piercing clamp is mainly composed of insulating shell, piercing blade, waterproof rubber pad, and torque bolt. When making a cable branch connection, insert the branch cable into the branch cap and determine the position of the main line branch, use a socket wrench to tighten the torque nut on the clamp, as the torque nut is tightened, the upper and lower two insulators with piercing blades hidden in the clamp Gradually close, at the same time, the arc-shaped sealing rubber pad wrapped around the piercing blade gradually adheres to the cable insulation layer, and the piercing blade starts to pierce the cable insulation layer and metal conductors. When the sealing degree of the sealing rubber gasket and the insulating grease and the contact between the piercing blade and the metal body reach the best effect, the torque nut will automatically fall off. At this time, the installation is completed and the contact point sealing and electrical effect reach the best. Product Overview
1.1 Piercing structure, simple installation, no need to strip insulated wires;
1.2 Torque nut, constant puncture pressure, to ensure good electrical connection without damaging the wire;
1.3 Self-sealing structure, moisture-proof, waterproof, anti-corrosion, prolong the service life of insulated wires and clamps;
1.4 Use special contact blades, suitable for copper (aluminum) butt joint and copper-aluminum transition;
1.5 The electrical contact resistance is small, and the contact resistance is less than 1.1 times the resistance of the equal-length branch wires;
1.6 Special insulating shell, resistant to light and environmental aging, dielectric strength>12KV;
1.7 Curved surface design, suitable for the same (different) diameter wire connection, wide connection range (0.75mm2-400mm2).

Product Detail
